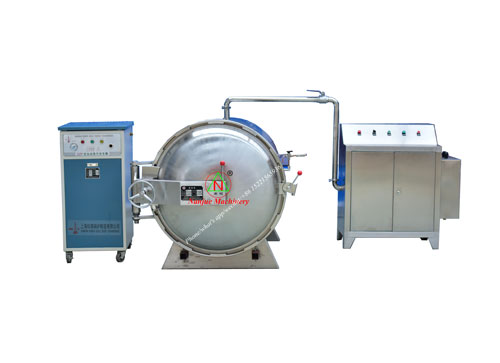

[herb moistening machine]
Main application
Widely used for softening many kinds of herbal medicine and agricultural products, to avoid the loss of active ingredients. It can steaming & moisten herbal materials.
Working principle
The machine is equipped with water tank, measuring ruler, steam heating, water tank in the cold water, then water embellish.Control box with vacuum pump, solenoid valve, contactor, button switch is made.Pumping air into vacuum state, water drain valve, steam valve, vent valve, solenoid valve control.
Performance features
1. Optional operation mode: cold water, warm water, steam£¬ the Infiltrating is better.
2. Rational structure,Easy to operate and maintain.
3. The steaming for herb medicine is much better than steaming machine, owns high efficiency.
4. The boiler adopt SUS 304 cylinder design, Strong resistance to pressure ,not easy to deformation
5. Meet the requirements of GMP.
Technical specification
| Model No. | RYJ-900 | RYJ-1200 | RYJ-1200 |
| Volume(L) | 1100 | 2000 | 3000 |
| Cylinder size(mm) | 900 *1950 | 1200*1700 | 1200*2800 |
| vacuum pressure£¨Mpa£© | 0.09 | ||
| steam pressure £¨Mpa£© | Normal pressure£¼ 0.05 | ||
| vacuum pump£¨KW£© | 2.2 | 3.2 | 3.2 |
| dimension of cylinder£¨mm£© | 2050×1200×1150 | 1800*1500*1550 | 2950×1500×1550 |
| dimension of controller(mm) | 1000×500×1050 | ||
