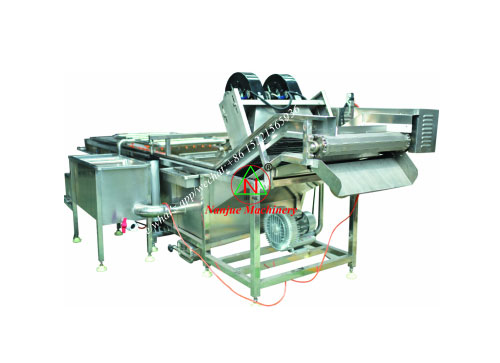

[Bubble type herb washing machine]
Main application
Mainly used in Chinese herbal medicine, vegetables, fruits, aquatic products and other granular, leaf, root products clean, soak, sterilization and solid color, etc.
Working principle
This machine is made of SUS304 material with water as medium, the bubbles are formed by strong flow turbine fan back, for flexible cleaning materials.Pool of department at the same time of cleaning cleaning spray pipe and nozzle, the surface material using high pressure water repeatedly into the water to clean, ensure the cleanliness of materials.In the ascension of mesh belt position add spray materials for secondary cleaning, nozzle for removable nozzle, easy to clean to prevent blockage, adjustable nozzle Angle, more effective cleaning materials.
Performance features
1. Safe and reliable with food-grade materials, no pollution.
2. The transmission smooth, adjustable speed, the material with the travel of the conveyor belt movement, to avoid the damage of conveying material.
3. The noise is small, suitable for working conditions requiring more quiet.
4. Simple structure, easy to maintain.
5. Less energy consumption, low use cost.
6. Meet the requirements of GMP.
Technical specificatio
| Model No | QPXYJ-800 |
| Capacity £¨Kg/h£© | 300-1000 |
| Run motor power(Kw) | 0.55 |
| Width of belt(mm) | 800 |
| Vortex pump power(Kw) | 3 |
| Cycle pump power(Kw) | 3 |
| Convey speed (M /min) | 2-8 |
| Dimension(mm) | 5000*1250*1550 |
