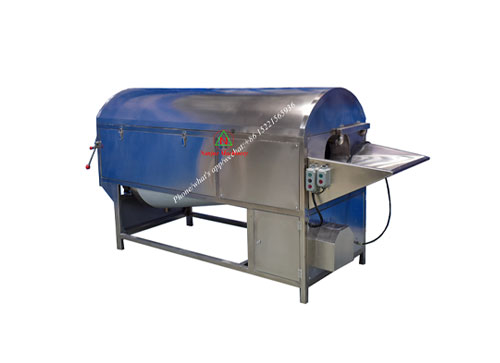

[herb washing machine]
Main Application
Suitable for washing different kinds of herbal materials¡¢vegetables and fruits, such as peels, seeds shellfishes,licorice roots and rhizomes of over 2mm diameters etc. It¡¯s the perfect cleaning machine for herbs tea factory¡¢herbs medicine factory and hospital.
Working principle
The machine adopts cylinder rotary, and equipped with high-pressure water pump spray, can use water directly, or the circulating water in the tank. It use internal screw guide to promote the material, implements the continuous production, automatic discharging. Can use repeatedly washing to special raw materials. Replaced the traditional manual method, improve the labor intensity and ground pollution, with high efficiency, low noise, easy maintenance etc, Meet the requirements of GMP.
Technical specification
| Model | XYJ-700 | XYJ-900 | XYJ-1200 |
| Capacity(Kg/h) | 300-1000 | 400-1400 | 500-1800 |
| Diameter of cylinder(mm) | 700 | 900 | 1200 |
| Length of cylinder(mm) | 2000 | 2600 | 3600 |
| Speed (R/min) | 8 | 8 | 8 |
| Power | 1.1+1.1 | 2.2+1.5 | 5+4 |
| Dimension (mm) | 2750¡Á980¡Á1350 | 3480¡Á1250¡Á1500 | 5000¡Á1450¡Á2300 |
